Porte di ingresso

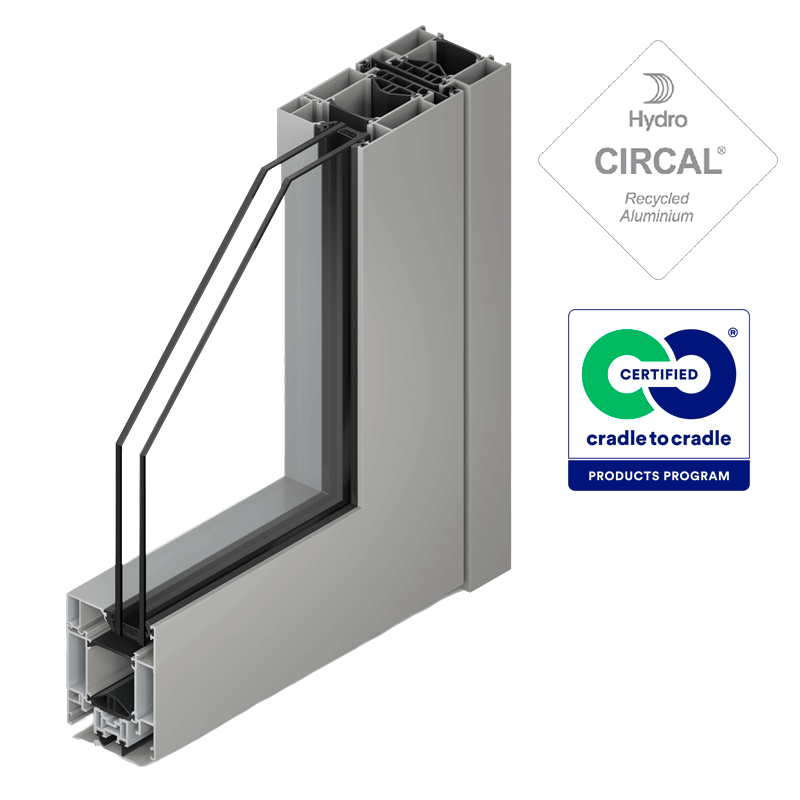

SOLEAL Next 75

Portoncino d'ingresso

High performance universal door

Descrizione
Aluminium
More possibilities
Hydro CIRCAL
Sustainability
  • 75 mm module with thermal break
  • Great versatility: ideal for both buildings and individual housing projects
  • Straight and sober lines for a slim appearance with minimal views of aluminium and a nice global finish
  • Compatible with the full SOLEAL Next range
  • Concealed hardware and elements
  • Large dimensions up to 3 m high in 1 or 2-leaf
  • High acoustic, thermal and weather performances
  • Strong and efficient safety features
  • Sustainability: 75% recycled and 95% recyclable

Brochure

Specifiche tecniche

APPLICAZIONI

  • Single leaf hinged door – stand alone
  • Panel door
  • Pivot door
  • Door with fixed fields
  • Façade integration
  • Panic doors
  • Anti-finger trap
  • Burglary resistance
  • Anti-bacterial nano-coating on handles
  • Barrier free and low threshold

ALTE PRESTAZIONI

  • Thermal performance: Ud up to 0.89 W/m²K, 1-leaf open in, low threshold, glazed, (WxH) 1500 x 2640 mm
  • Air permeability: Class 4
  • Water tightness: Class 6A
  • Wind pressure resistance: Class 2
  • Acoustic performance: Rw up to 43 dB
  • Endurance test for heavy traffic: up to 2.000.000 cycles
  • Burglary resistance: RC2, RC3 and PAS24
  • Bullet resistance: FB4 NS

GRANDI DIMENSIONI

  • Height: up to 3 meters
  • Glazing thickness: up to 59 mm
  • Infill weight: up to 200 kg
